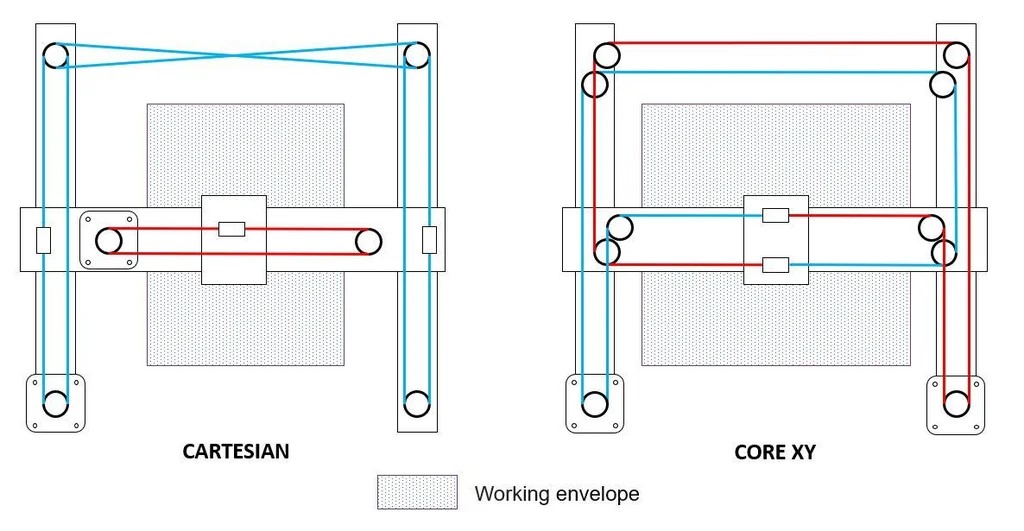

Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore I made the entire 2020 profile rail system with motors, X-axis, with belts installed, then realized how "wonky" and loose the system was because of the number of corner braces used.

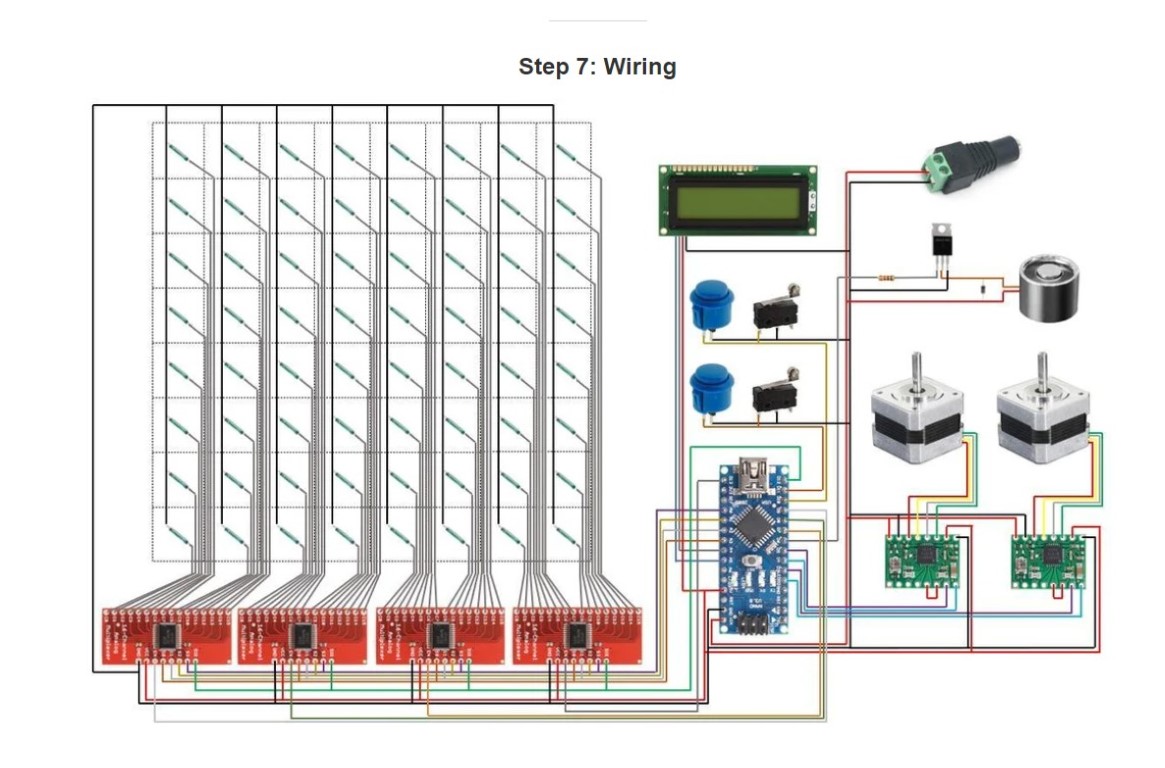

Replacing the wires to the switches with copper tape was a good move because it was more compact and easy to implement.

I also made a box to fit the mechanism in.

ua.

Send Comments

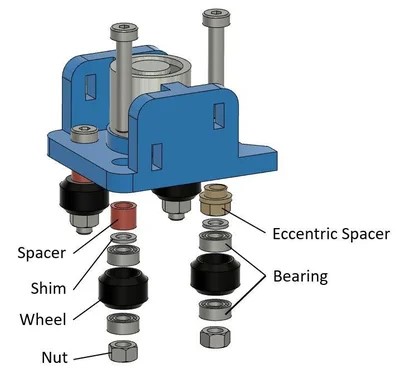

Trolley that holds the magnet (in center)

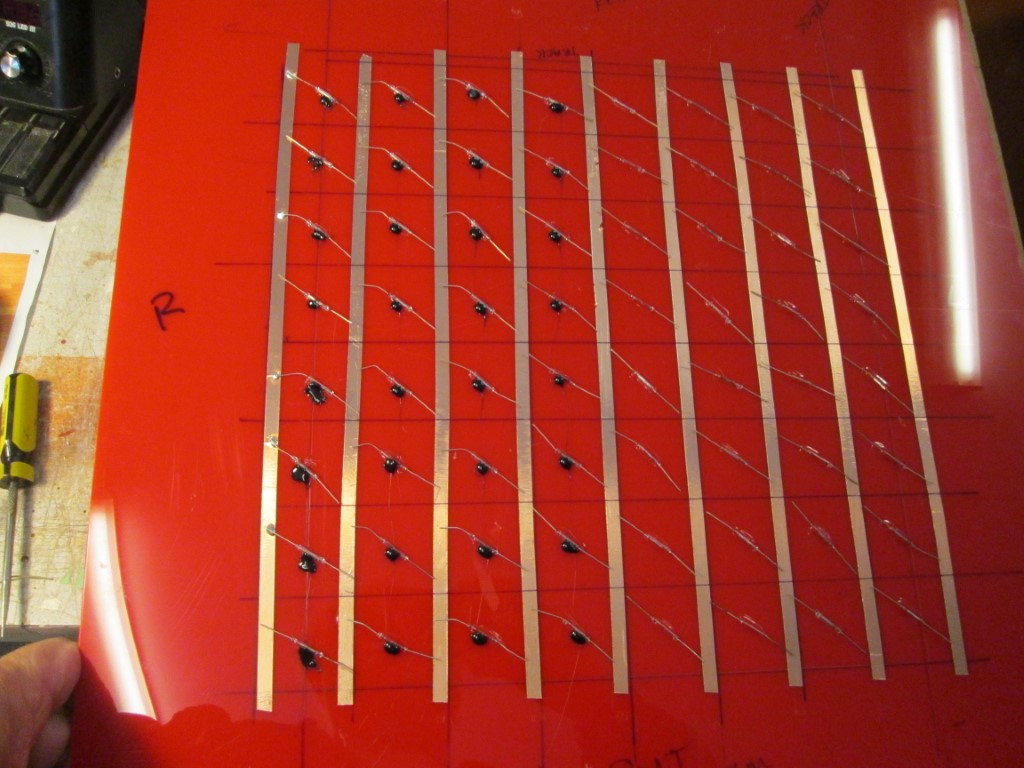

The copper strips are the ground returns for each reed switch

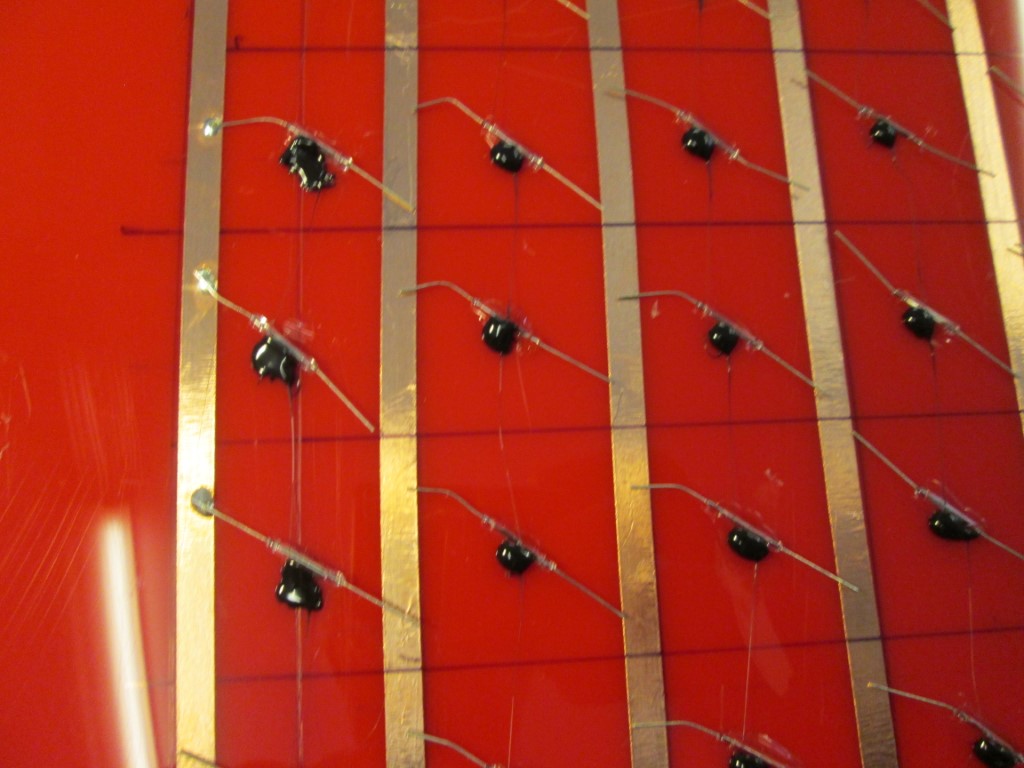

closeup of the connections. The black glue held the switches in place

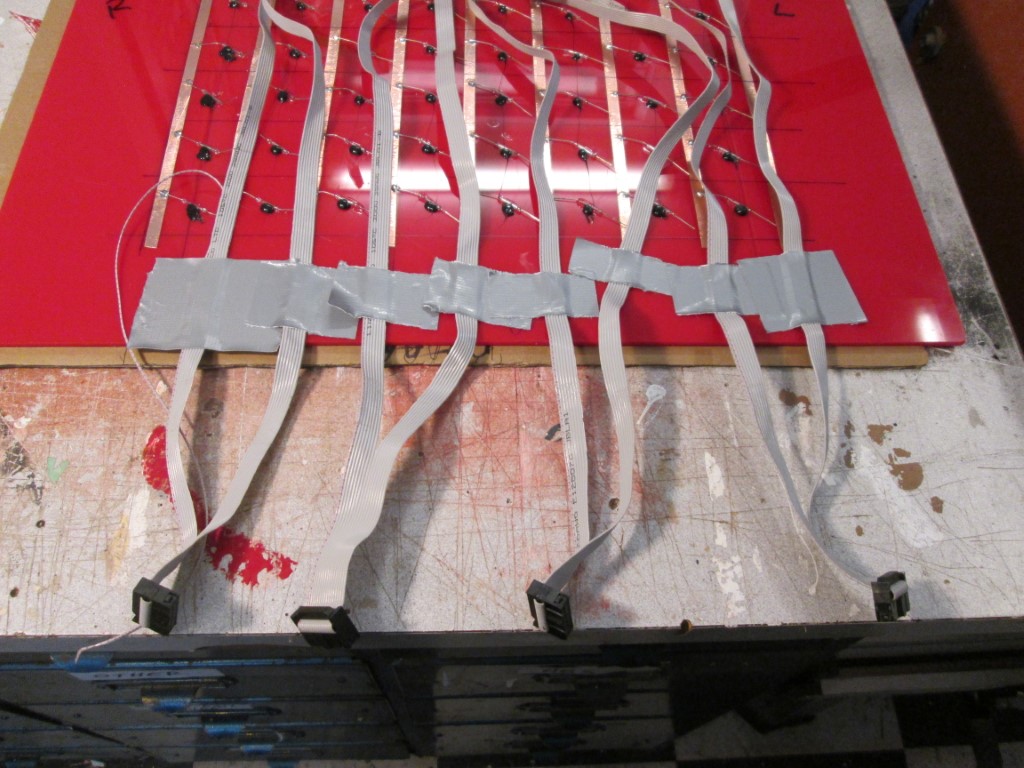

It is quite a mess when the wires are attached

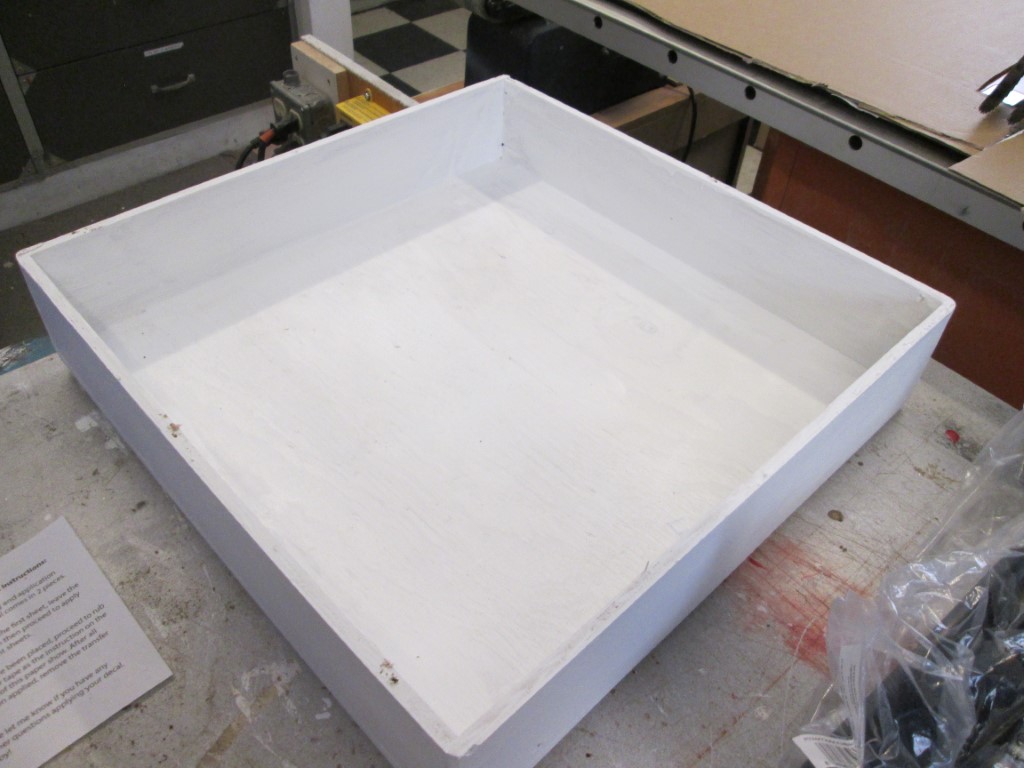

I made the box early because I knew the dimensions

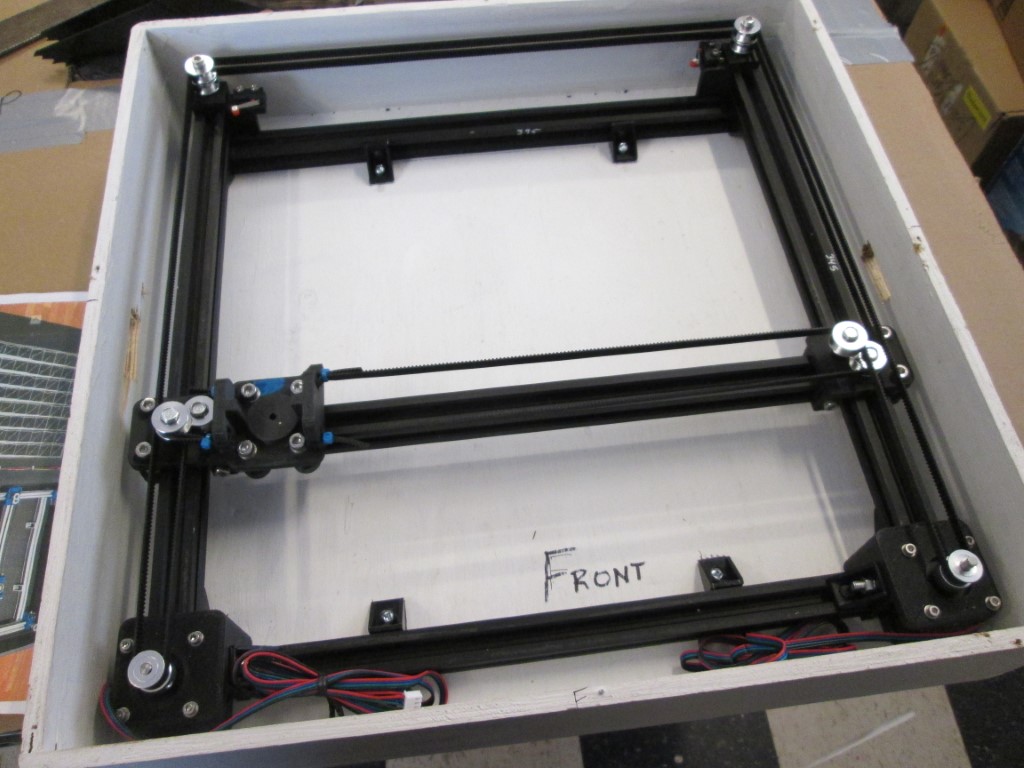

The aluminum profile mechanism was easy to assemble

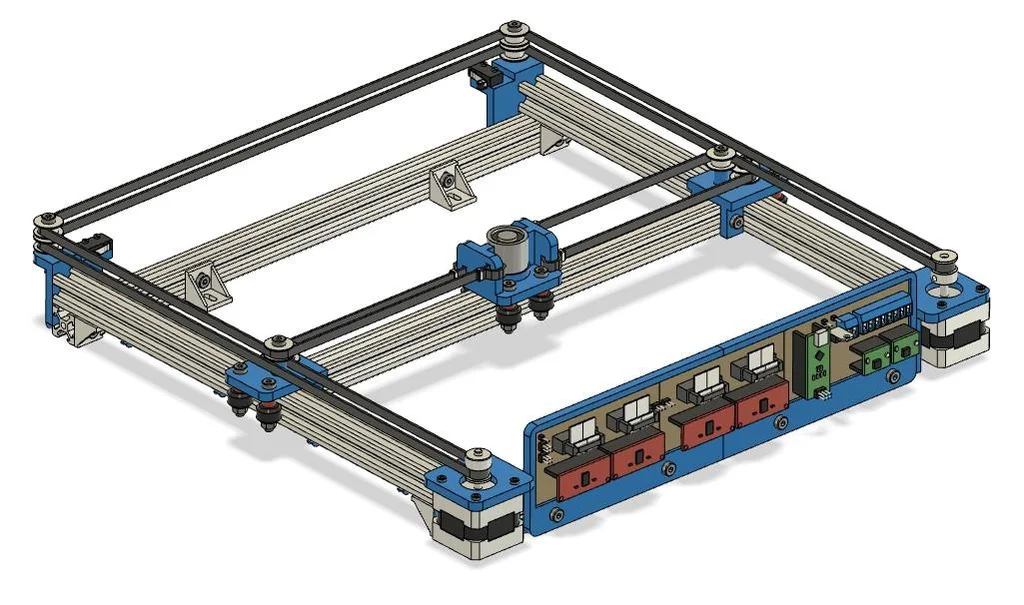

From the web, the completed original design

First Build
